let’s see how SOLIDWORKS Electrical enables you to draw feature-rich wires with ease and how you can save time by tackling wire number revisions with only a click of a button.

First, wire style manager. This is the place where you create and define REUSABLE wiring information such as color, gauge and numbering scheme. I can organize wires in a systematic manner to minimize errors while maintaining design flexibility

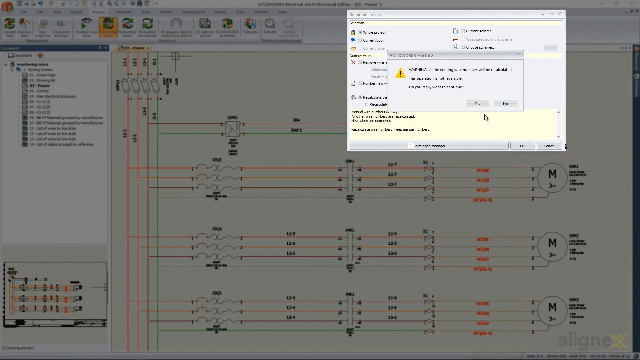

Wait, did I just forget to connect a few more wires to the top motor? Ah, that’s an easy fix. Now I need to renumber the wires so I can get an incremental order from top down. This is when SOLIDWORKS Electrical’s “renumber wires” command saves me from manually relabeling the wires. Truly being able to create wires in STYLE and condense HOURS of wire number revisions into only a few clicks with SOLIDWORKS Electrical, you will be the next engineer hero. While SOLIDWORKS Electrical is all effortless at editing wires, it also comes with powerful report generation to let you convey your design intents with extra clarity. Hey, you can even up the game with SOLIDWORKS Electrical 3D to translate your 2D schematics directly to 3D SOLIDWORKS models. What would you have accomplished with all this power and time saved?
